6'X19’ Ada 3 Station Restroom Trailer W/ A/C, Ramp Included - Free Shipping Lower 48 States

Overview

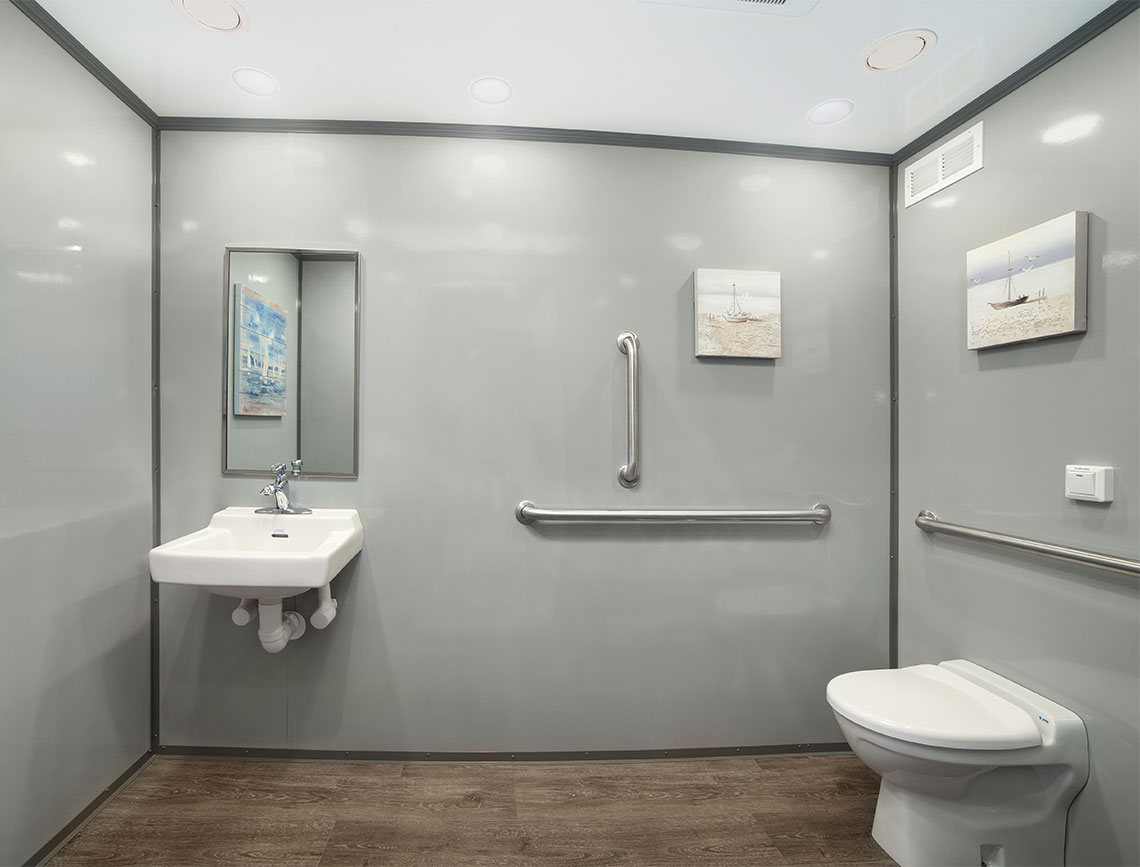

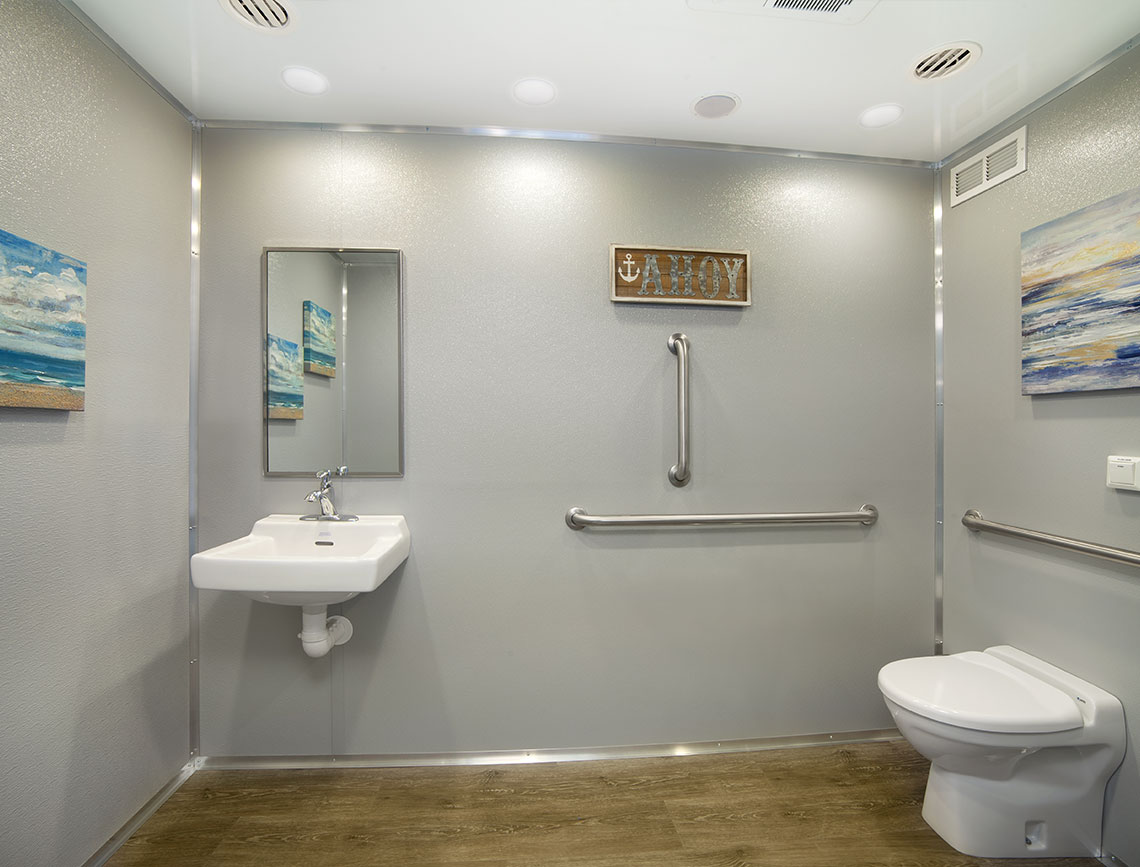

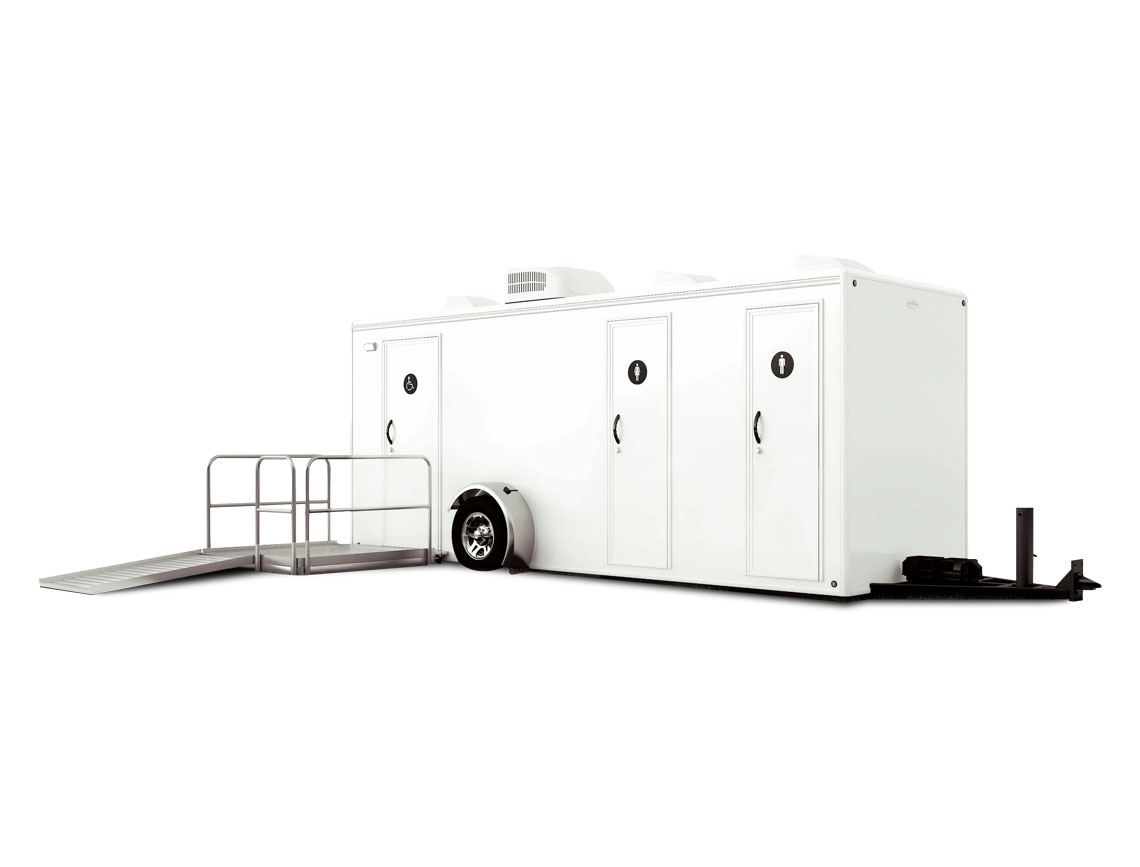

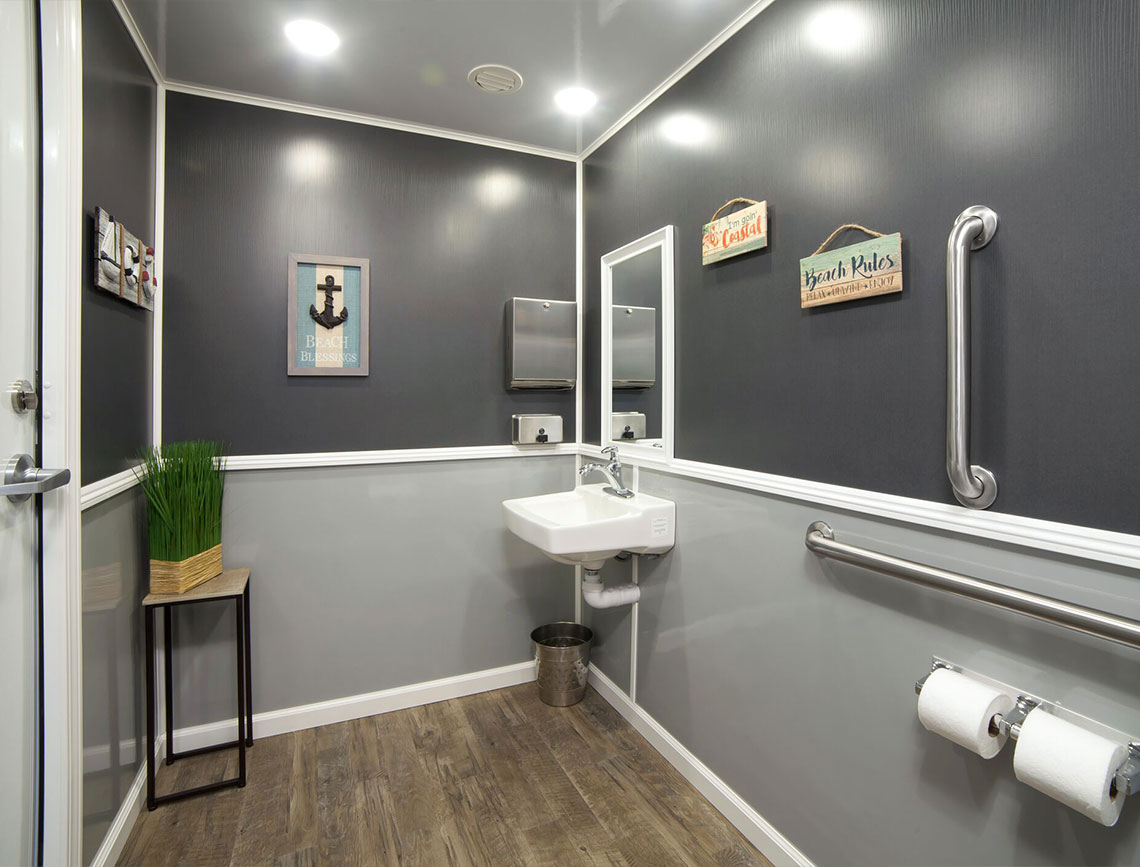

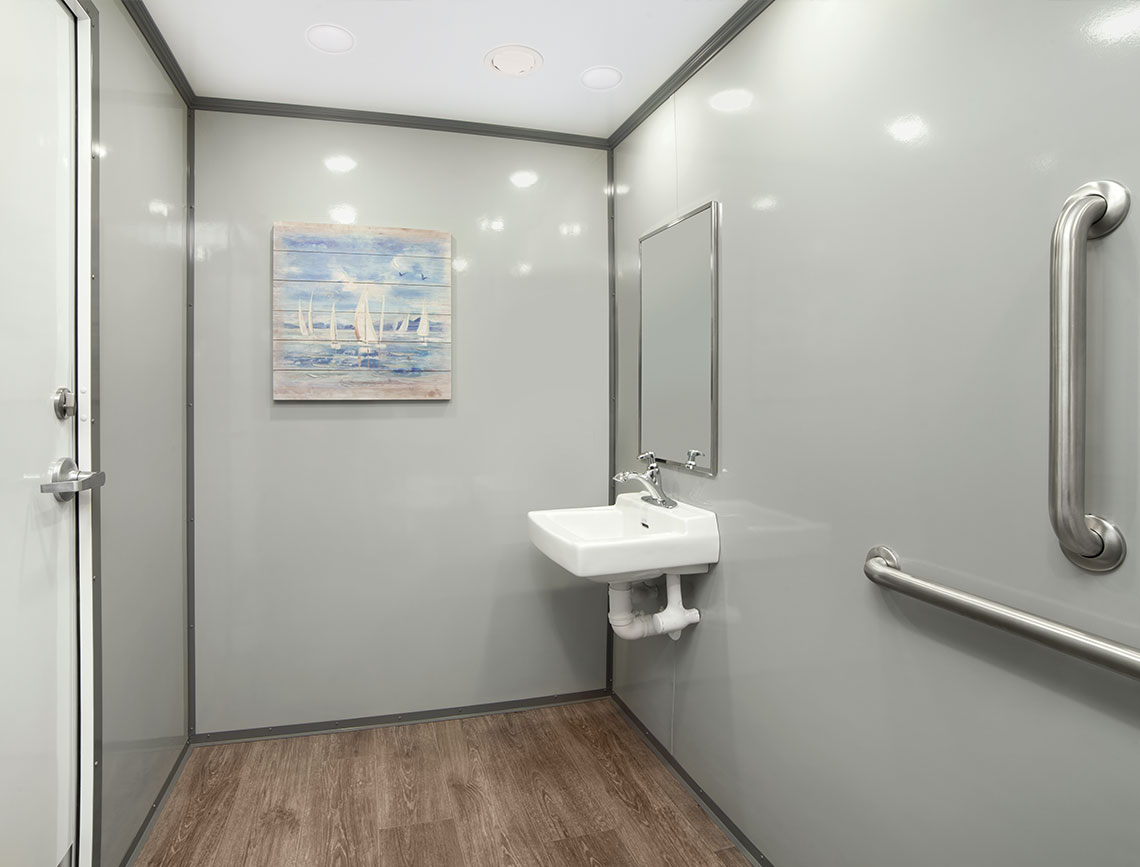

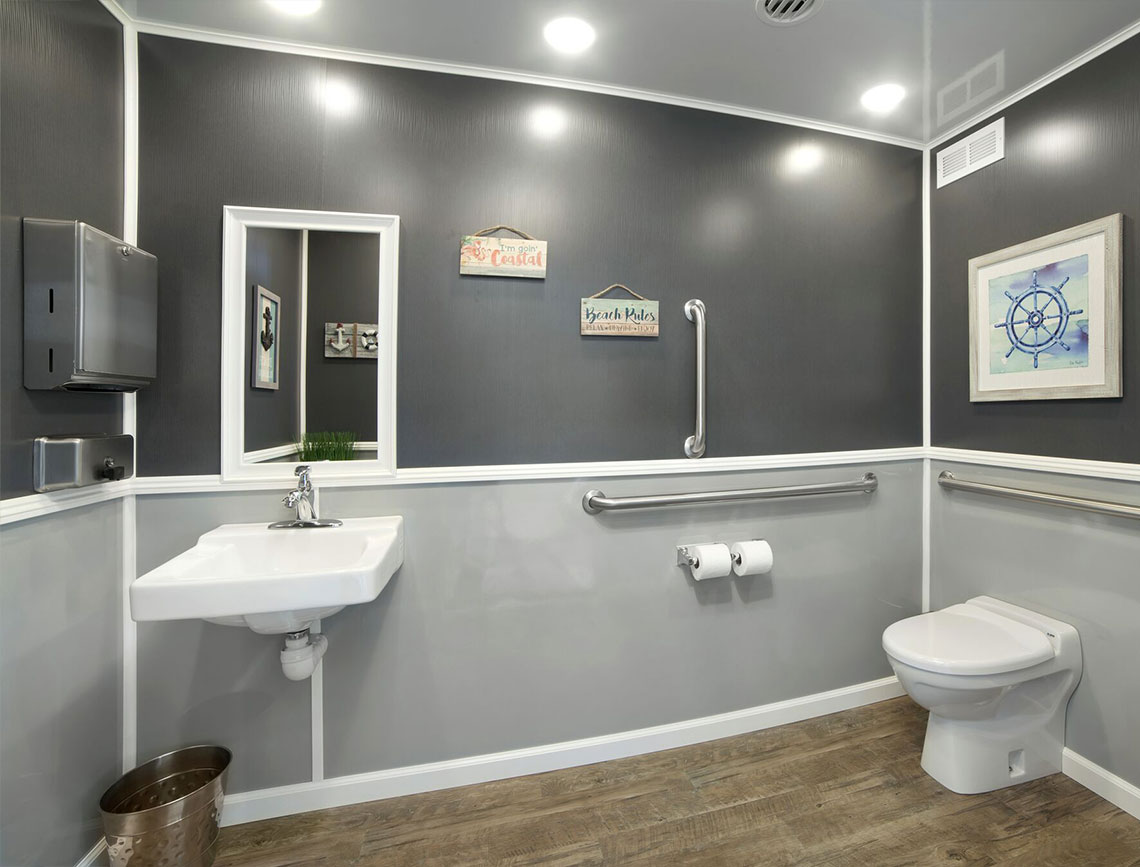

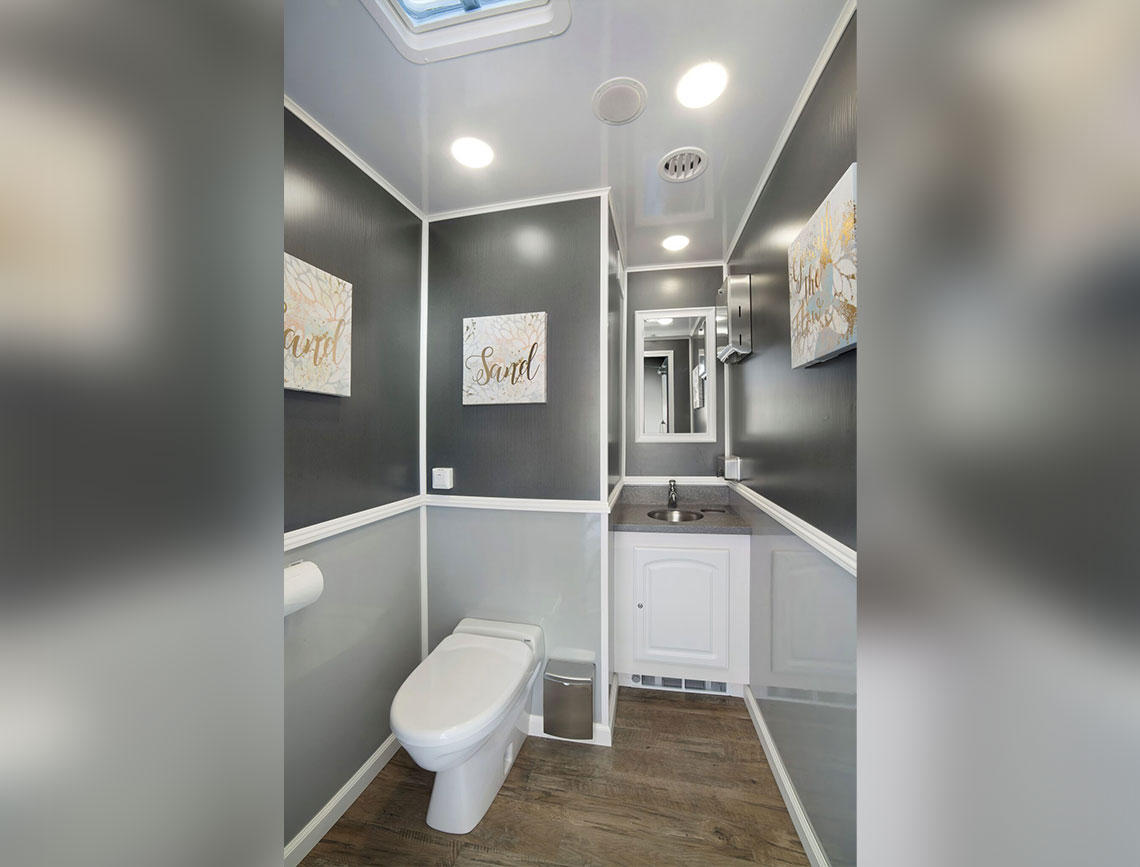

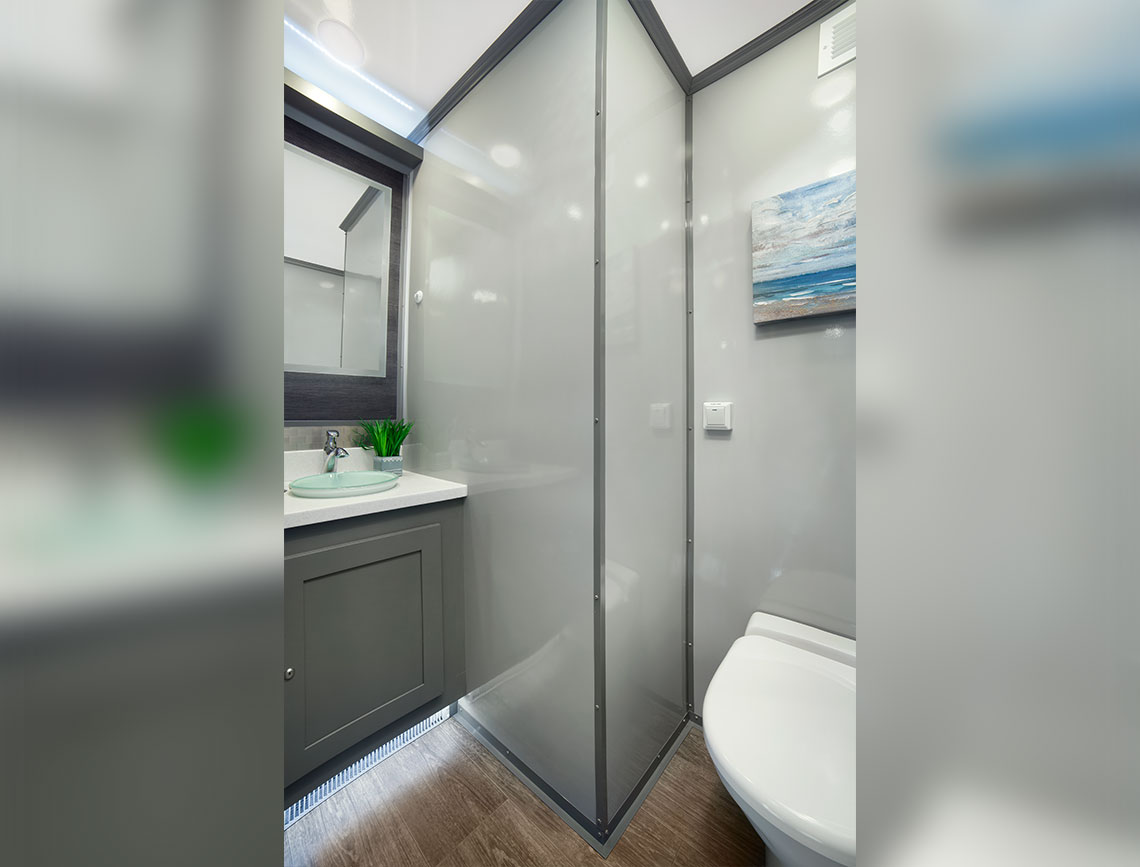

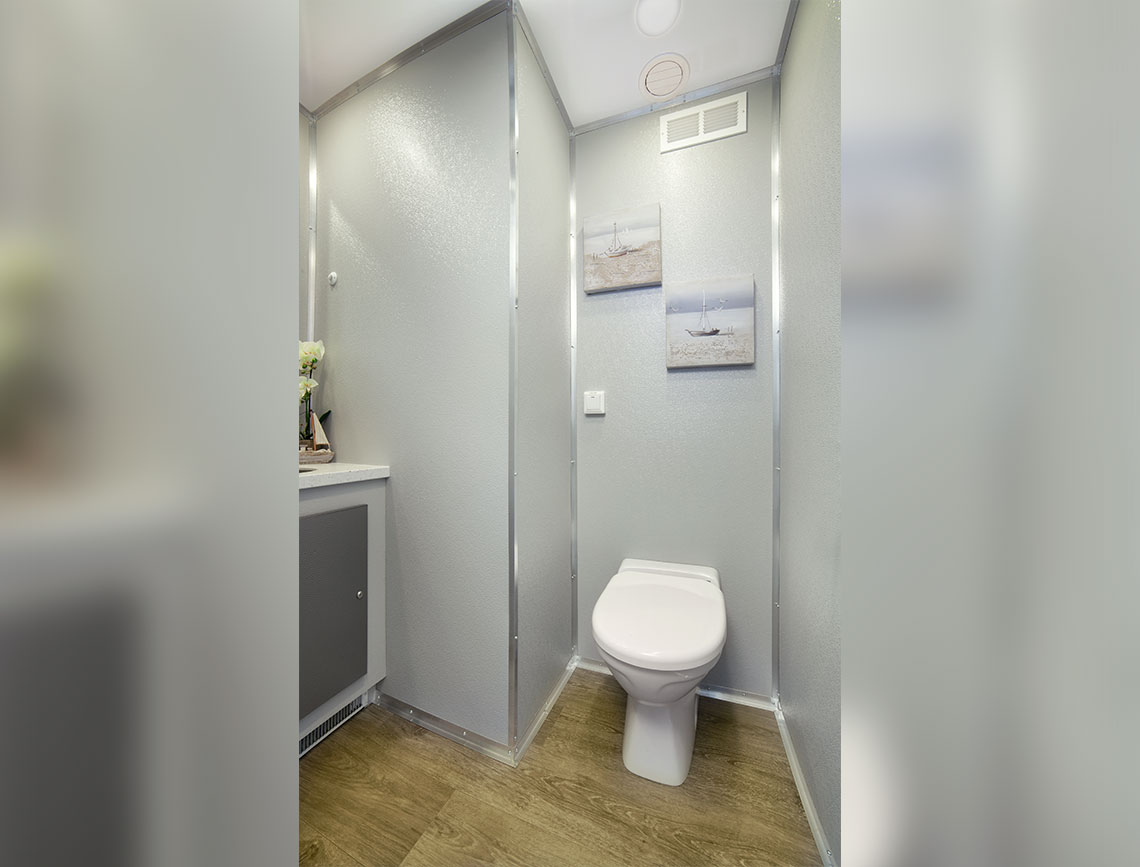

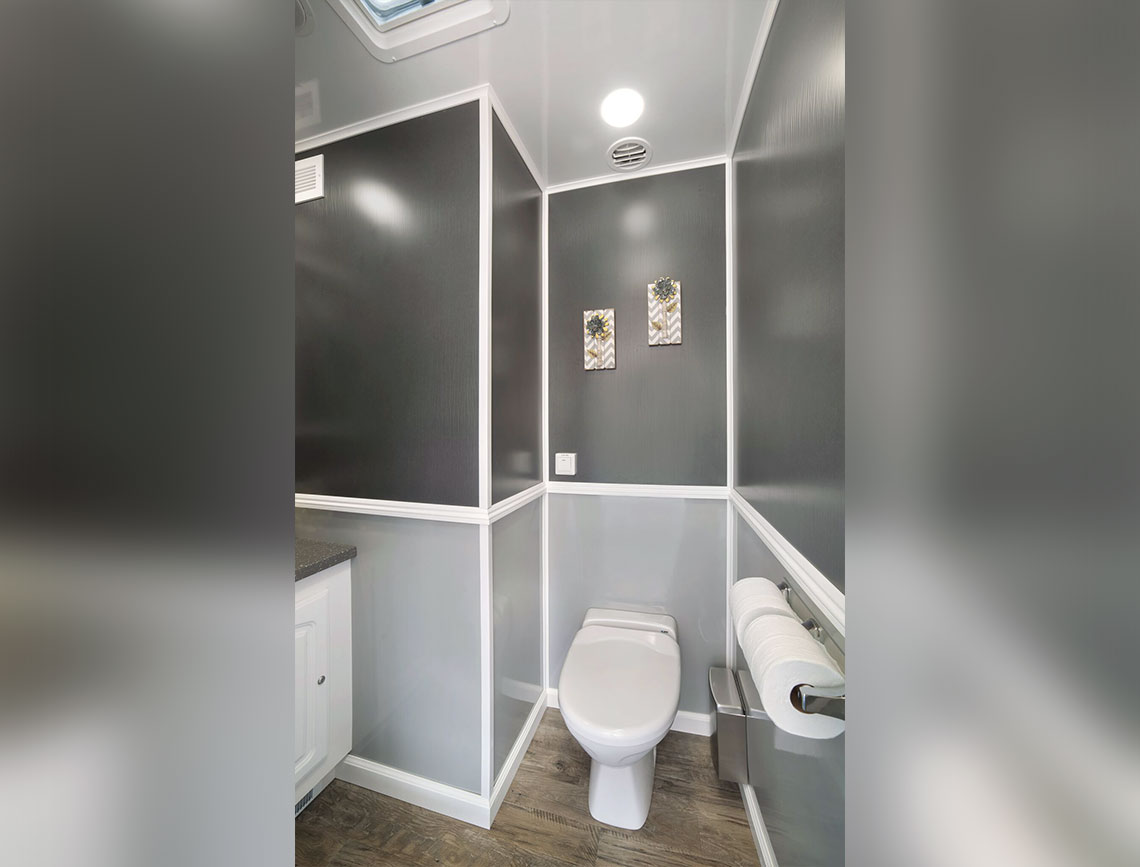

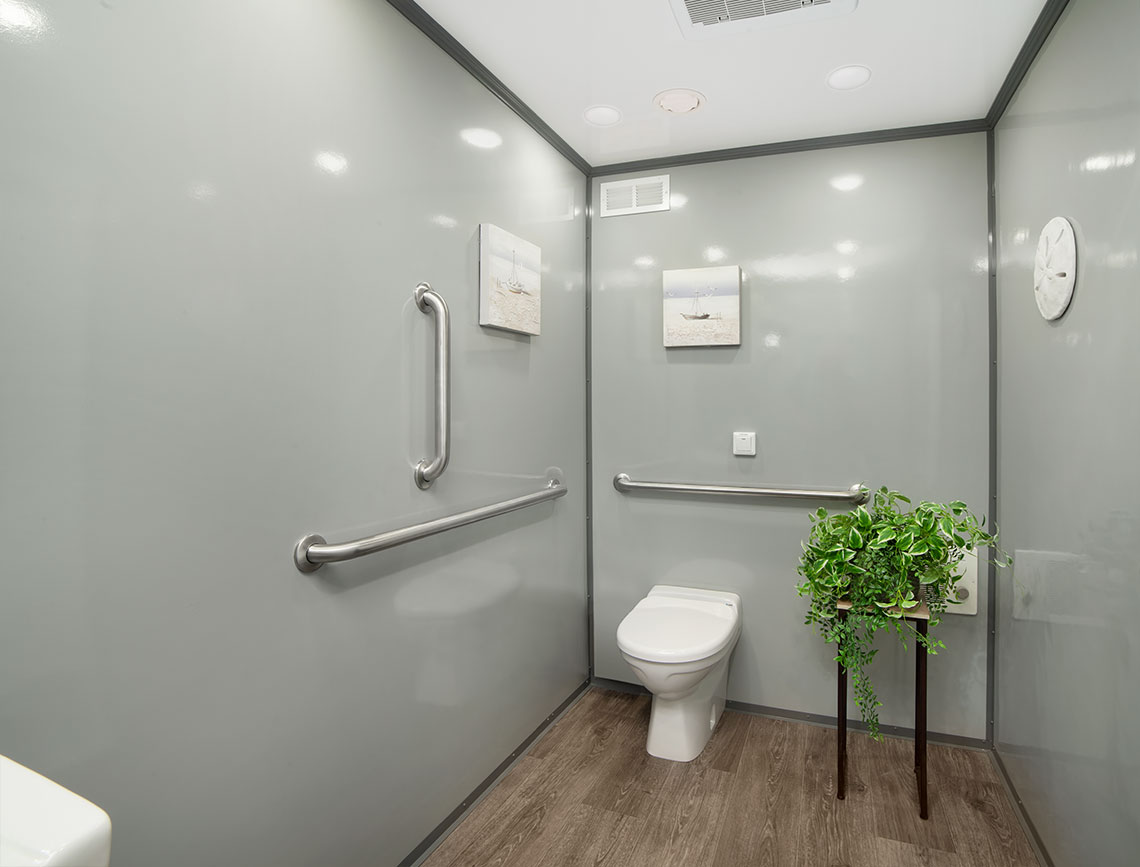

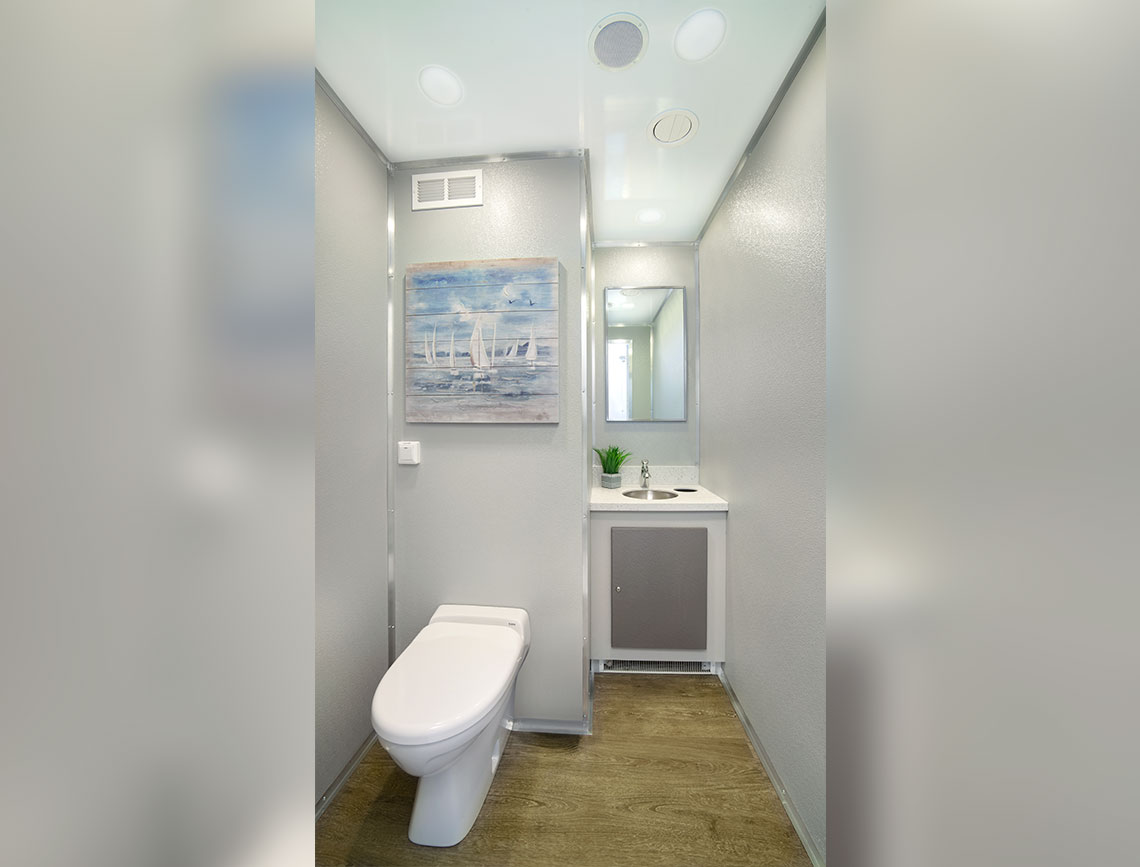

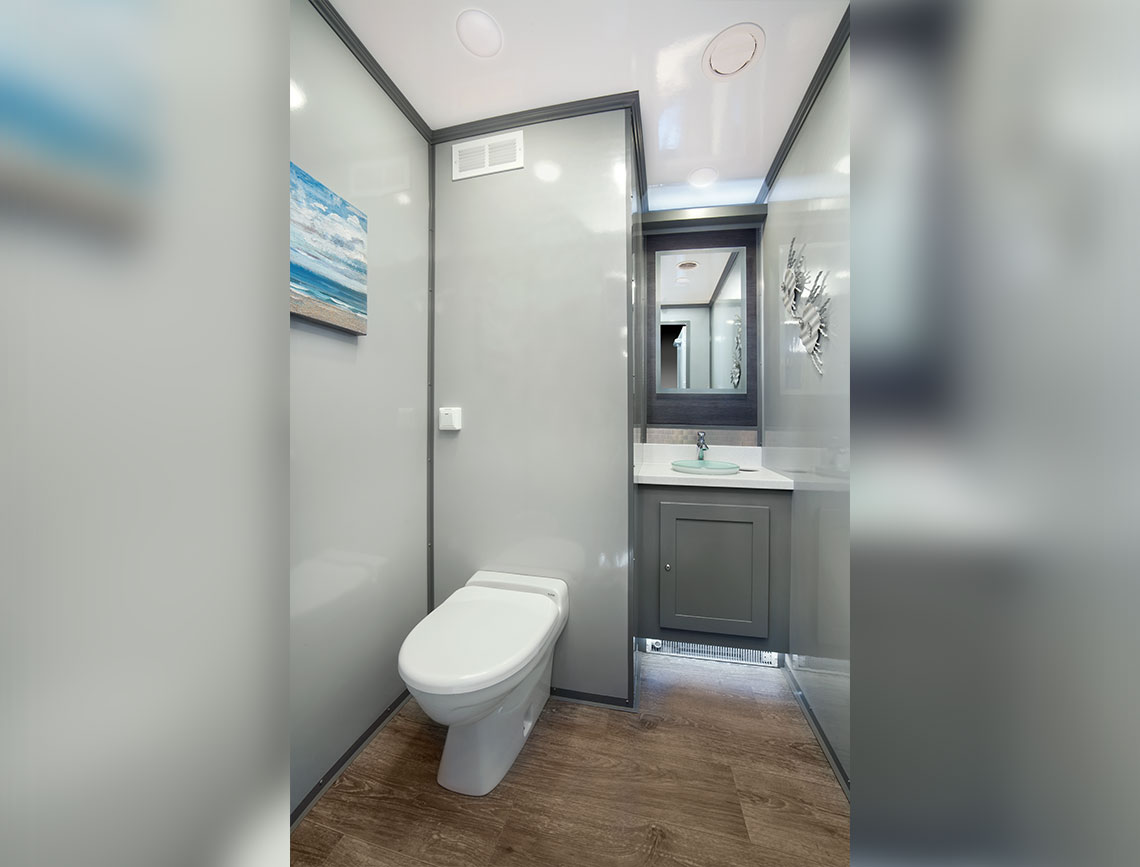

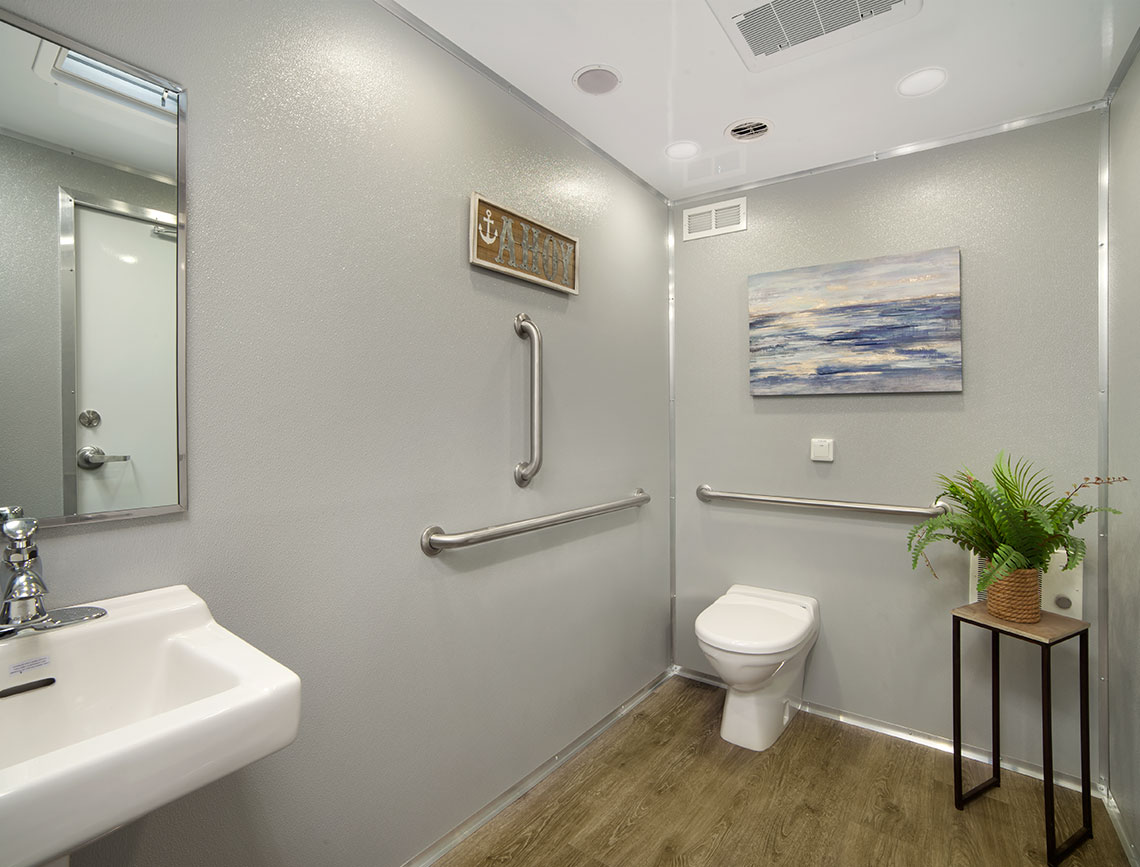

If you need flexibility, the ADA+2 has it! An ADA, paired with two standard restroom stalls, provides a single solution for events that require both. The trailer has air suspension, making it easy to tow and much easier to lower and level. The wheels disengage swiftly from their stub axles, and the air suspension system softly lowers the trailer to the ground. Once the trailer is in place, just lower the associated platform, snap on the six-foot ramp, and slide in the handrails to complete the setup. The ramp has a little inclination, and the platform allows users plenty of room to navigate and open the door.

In all Satellite Suites ADA trailers, waste is collected using a highly efficient vacuum system. This method has an advantage over macerating toilets in terms of waste removal speed and distance. It immediately evacuates after flushing and can be pumped up to 100 feet away, depending on the site circumstances. This method also makes removing foreign objects more easier. The technology grinds garbage and objects, including t-shirts and diapers, without clogging the mechanism.

Proposition 65 for purchases in California

! WARNING: These products may contain chemicals known to the State of California to cause cancer and or/birth defects or other reproductive harm. for more information go to www.P65Warnings.ca.gov

Specifications

• No. of Stations: 3

• Approx. No. of Uses: 1,000

• Oz per Use: 32

• Length | w/Tongue: 19' | 24'

• Width | w/Ramp Down: 6' | 19'

• Ride Height: 9'3"

• Ride Height w/AC: 10'4"

• Kneeling Height w/AC: 9'2"

• Freshwater: 105 gal

• Wastewater: 300 gal

• Weight: 8,200 lbs

• Axle: 10,000 lb Torsion

• Wheels: 16" Aluminum

• Tires: 5 year warranty | 2 Year Roadside Assistance

Download/Media

• Product Brochure: 6x19 Plus 2 ADA Sell Sheet (pdf)

• Parts Brochure: Satellite Suites Parts Catalog (pdf)

Some of the key features on our units include:

Non-Wood Structure – The exterior walls and roof feature aluminum frames, composite backers, and a seamless Gel Coat fiberglass skin, all laminated together. Removing wood from the structure eliminates rotten walls & door jambs, and wall delamination from the equation, and provides a longer lasting trailer with very low maintenance.

Sleek Exterior – To compliment the pristine white Gel Coat exterior, we powder coat all the exterior trim for a clean, uniform, sleek and tasteful appearance.
Powder Coated Chassis – The powder coated chassis will stay shiny and new looking years and years beyond a painted chassis.

Over Armor™ Roof Skin with Watershed Design – We have exclusive rights to a composite roof skin that is much stronger than rubber, vinyl, and aluminum; and won’t degrade, rip or expand and contract like the prior. Because it’s rolled on the sides, it won’t retain water, which can lead to leaks.

Non-Wood Sub Floor – The sub-floor is also a seamless composite, not treated wood. So it is lighter, stronger, and will never suffer water damage like a wood floor can.

Plastic Tank with Sump and Bottom Dump – We use with a smooth polypropylene tank so waste won’t stick to it, and added a low point sump with bottom dump so you get all the waste out when the unit is pumped. No waste in the tank means no odor. A smelly tank can ruin the experience in an otherwise gorgeous trailer. The plastic tank will also never rust through or pop a weld, which can lead to a catastrophic tank leak.

We’ve also added operator friendly features like heavy duty sidewinder leveling jacks, external cord lockers, hidden lockable electric and water connection connections, easy to deploy steps that take literally seconds to deploy and retract, and a full size back up battery to make night set up easy. Then there are the user-friendly features like AM/FM Bluetooth wireless entertainment package , LED lighting, Corian counters, metered faucets, and the modern interior package.
Satellite Suites trailers are having a positive impact on our industry and providing operators a high value restroom trailer option. We can manufacture them to perform in any climate.
